Make Model. |

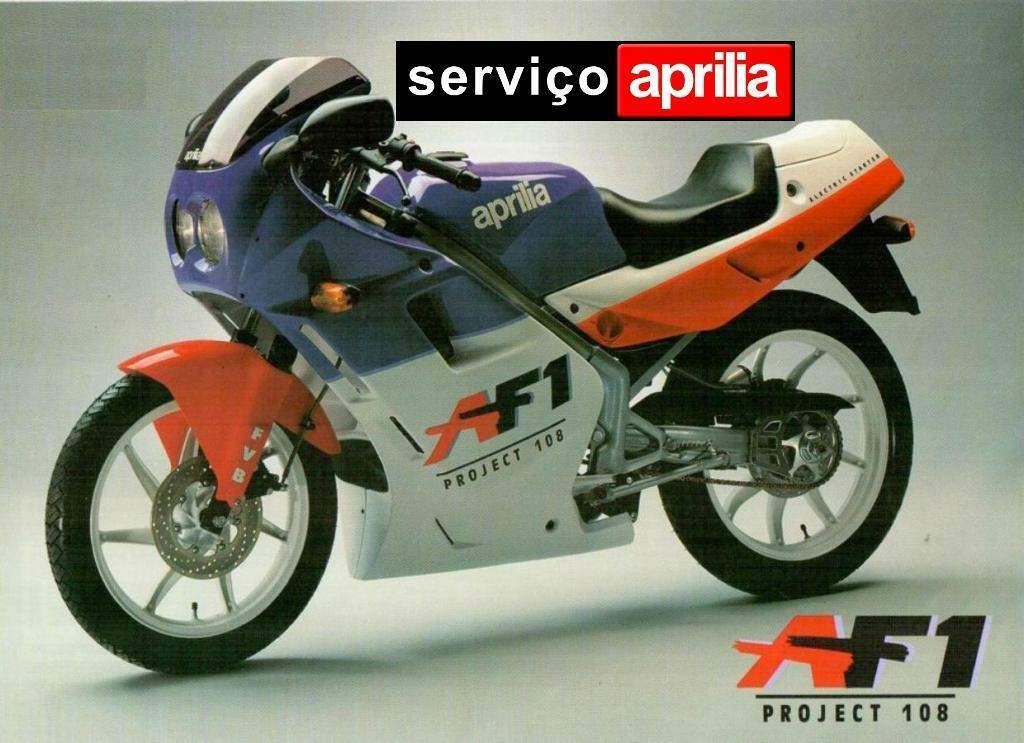

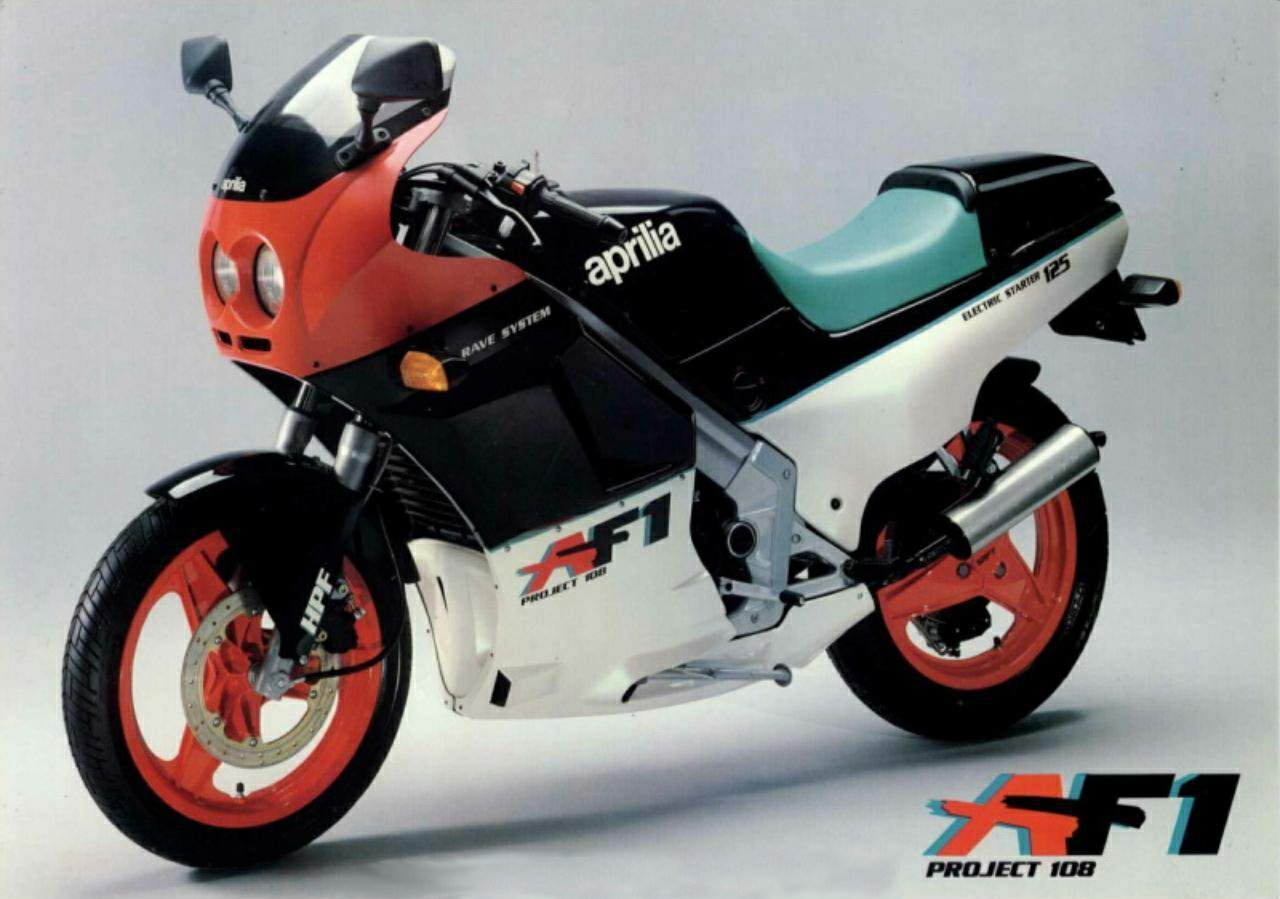

Aprilia AF1 125 Project 108 Sport |
|
Year |
1988 |
|
Engine |
Two stroke, single cylinder |
|
Capacity |
123 cc / 7.5 cu in |
|
Bore x Stroke |
54 x 54.5 mm |
|
Compression Ratio |
15.5:1 |
|
Cooling System |
Liquid cooled |
|
Induction |
Dell'Orto carburetor, Ø 28 mm |
|
Starting |
Electric |
|
Max Power |
18.7 kW / 25.1 hp @10000 rpm |
|
Max Torque |
17.7 Nm / 1.8 kgf-m / 13.1 lb-ft @ 8000 rpm |
|
Transmission |
6 Speed |
|
Final
Drive |
Chain |
|
Front Suspension |
Telescopic fork, 4-way anti-drive adjustable |
|
Rear Suspension |
Sebac mono shock |
|
Front Brakes |
Single Ø 260 mm disc |
|
Rear Brakes |
Single Ø 240mm disc |
|
Front Tyre |
100/80-16 |
|
Rear Tyre |
120/80-16 |
|
Dry Weight |
120 kg / 265 lbs |
|
Wet Weight |
134.6 kg / 297 lbs |
|
Fuel Capacity |
22.5 L / 5.9 US gal |
|
Consumption Average |
4.4 L/100 km / 22.7 km/l / 53 US mpg |
|
Braking 60 km/h / 37 mph - 0 |
12.8 m / 42.0 ft |
|
Braking 100 km/h / 62 mph - 0 |
39.9 m / 131 ft |
|
Standing
¼ Mile |
15.9 sec / 129.3 km/h / 80.3 mph |
|
Top Speed |
156.6 km/h / 97.3 mph |
|
Colours |
White/black/red/blue |
